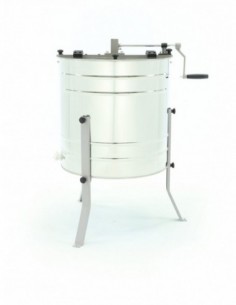

Honey extractor Ø600mm, 4-frame, manual drive, MINIMA
Tangential honey extractor, Ø600mm, 4-frame, universal basket, manual drive, MINIMA LINE. Packed in carton, self-assembly.
Reference: W2027B
Want to buy this product?
Please contact the distributor in your country
See the list of distributors
Tangential honey extractor, 600mm, 4-frame, will be used in smaller apiaries as well as beekeepers. They stand out with compact dimensions as well as easy operation. Their design solutions give them the opportunity to use them when spinning even the most dense honey. The design of the cone shaped honeycomb allows free flow of honey. Honey cakes packed in boxes, for self-assembly.

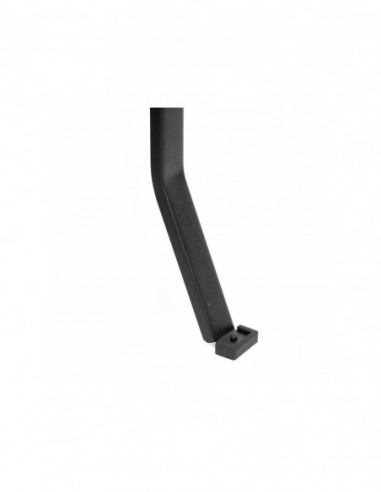

As standard, we add special pads to the honey extractors to increase the comfort and safety of bee-keeping. Thanks to them, the vibrations of the honey extractors during honey spin are minimized.
The pads are made of PVC (SOFT) material. Very often spinning frames of different weights due to the different amounts of honey they contain. By using LYSON pads you ensure the highest quality of device optimization.
Data sheet
- Line
- MINIMA
- Drum diameter
- Ø600 mm
- Frame type
- Universal
- Drive system
- Manual
- Power supply
- Controller
- -
- Motor
- -
- Drum thickness
- 0,6 mm
- Honey gate
- Plastic 6/4”
- Top bar
- Flat bar 10 mm powder coated
- Cover
- 3 mm acrylic glass
- Legs
- Hinges
- Plastic 4 pcs.
- Mesh size
- 20×20 mm
- Basket mount
- Polyamide sleeve
- Drum rim
- None
- Drum height
- 610 mm
- Other
- For self-assembly (shipped in carton)
